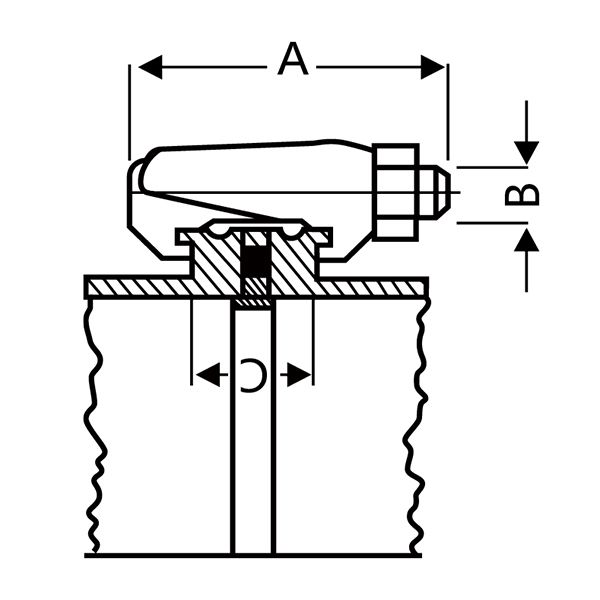

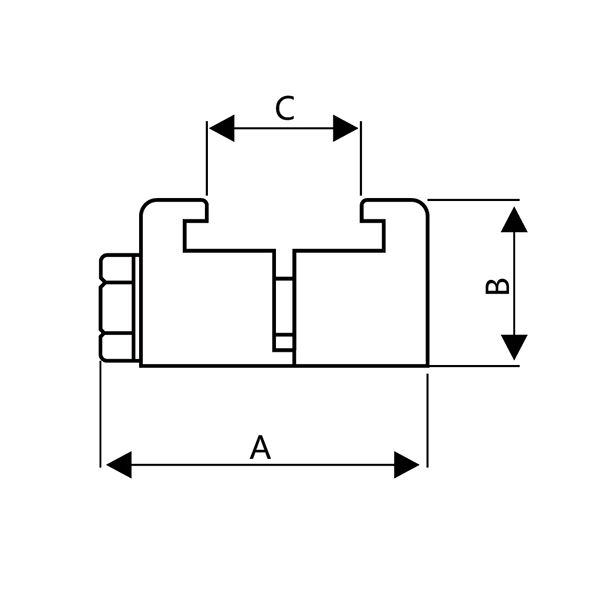

Tamaño | A | B | C |
KF63ISO | 50 | M8 | 20-33 |
KF250ISO | 53 | M10 | 20-33 |
KF320ISO | 85 | M12 | 26-46 |
Tamaño | A | B | C |
DN63 | 23.3 | 23.6 | 10-40 |
DN150 | 29.6 | 29.5 | 12-50 |
DN150 | 42 | 35 | 16-58 |

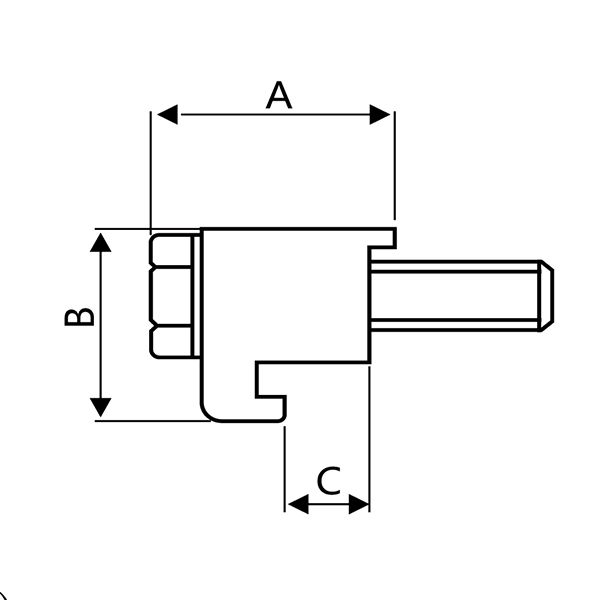

Tamaño | A | B | C |
KF63ISO | 60 | M8 | 20-33 |
KF250ISO | 68 | M10 | 20-33 |
KF320ISO | 83 | M12x83 | 26-46 |
KF630ISO | 96 | M12x95 | 30-60 |

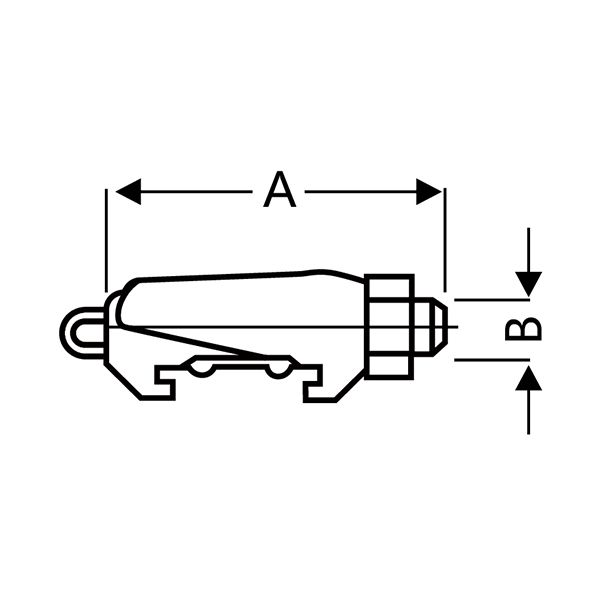

Tamaño | A | B |
KF63ISO | 124 | M12 |
KF250ISO | 167.5 | M16 |
KF320ISO | 182 | M20 |
KF500ISO | 228.5 | M24 |
Tamaño | øA | øB | C | D | E1 | E2 |
ISO63 | 95 | 70 | 12 | 90 | 63.7 | 76.4 |
ISO80 | 110 | 83 | 12 | 105 | 76.4 | 88.9 |
ISO100 | 130 | 102 | 12 | 12 | 101.8 | 108 |
ISO125 | 155 | 127.2 | 12 | 150 | 133.6 | 129.3 |
ISO160 | 180 | 153 | 12 | 175 | 152.9 | 159 |
ISO200 | 240 | 213 | 12 | 235 | 203.7 | 219 |
ISO250 | 290 | 261 | 12 | 285 | 254.5 | 273 |

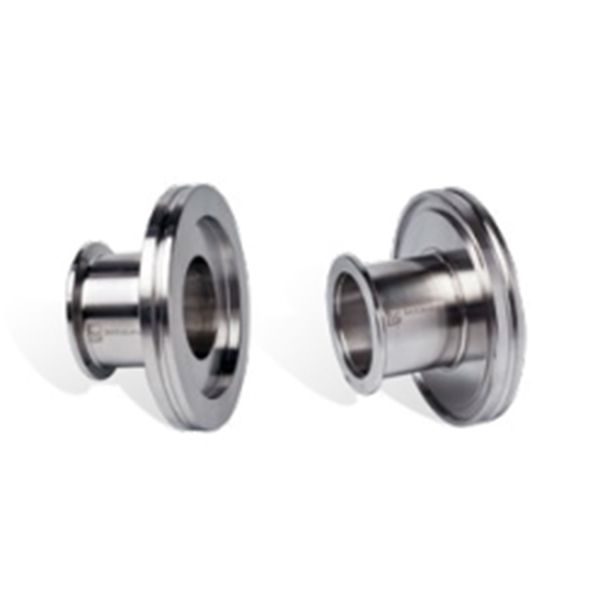

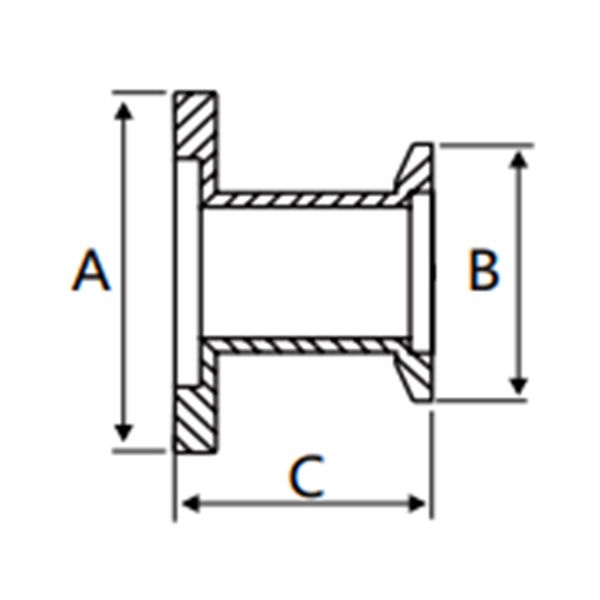

Tamaño | A | B | C |
ISO63-KF25 | ISO63 | KF25 | 46.50 |
ISO63-KF40 | ISO63 | KF40 | 46.30 |
ISO63-KF50 | ISO63 | KF50 | 46.30 |
ISO80-KF40 | ISO80 | KF40 | 46.30 |
ISO80-KF50 | ISO80 | KF50 | 46.30 |
ISO100-KF40 | ISO100 | KF40 | 46.30 |
ISO100-KF50 | ISO100 | KF50 | 46.30 |
ISO125-KF80 | ISO125 | KF80 | 46.30 |

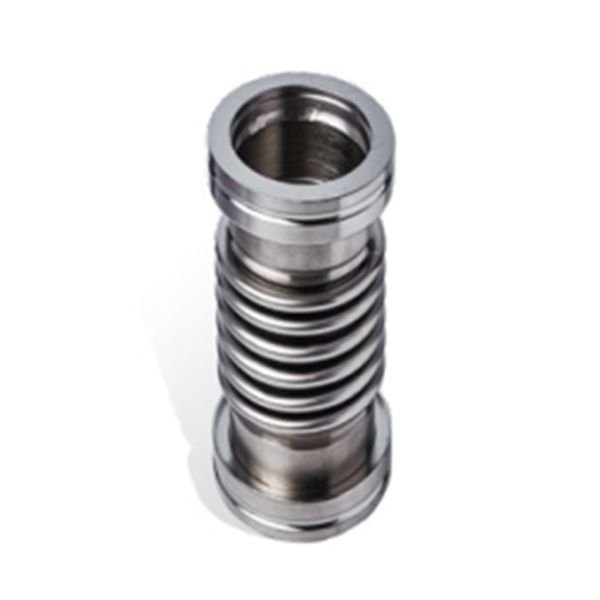

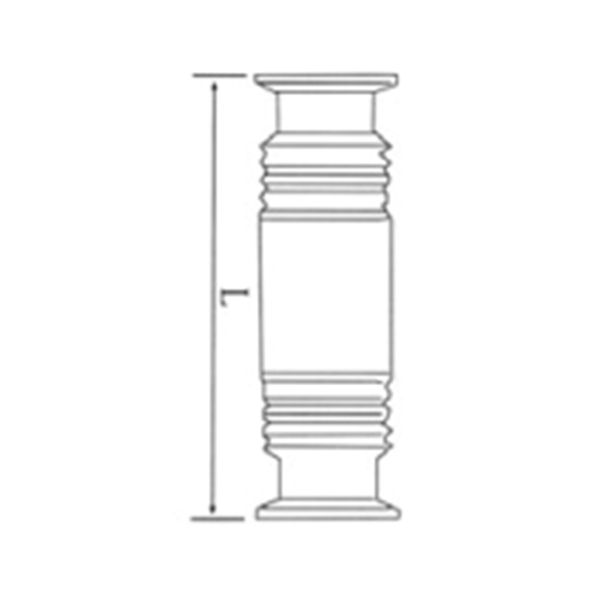

Tamaño | L |
KF-10/16 | 100-1000 |
KF-25 | 100-1000 |
KF-40 | 100-1000 |
KF-50 | 100-1000 |
KF-65 | 100-1000 |
KF-80 | 100-1500 |
KF-100 | 100-1500 |
KF-150 | 100-350 |
ISO-63 | 100-500 |
ISO-80 | 100-1000 |
ISO-100 | 100-1000 |
ISO-125 | 100-150 |
ISO-150 | 100-300 |
ISO-200 | 150-200 |
